The Wall · MRS-BASE · Holds the light

Base

The sealed, pre-wired, tested panel that every scene and every size shares.

Configure the Base

Every picture is the CAD, until it's printed

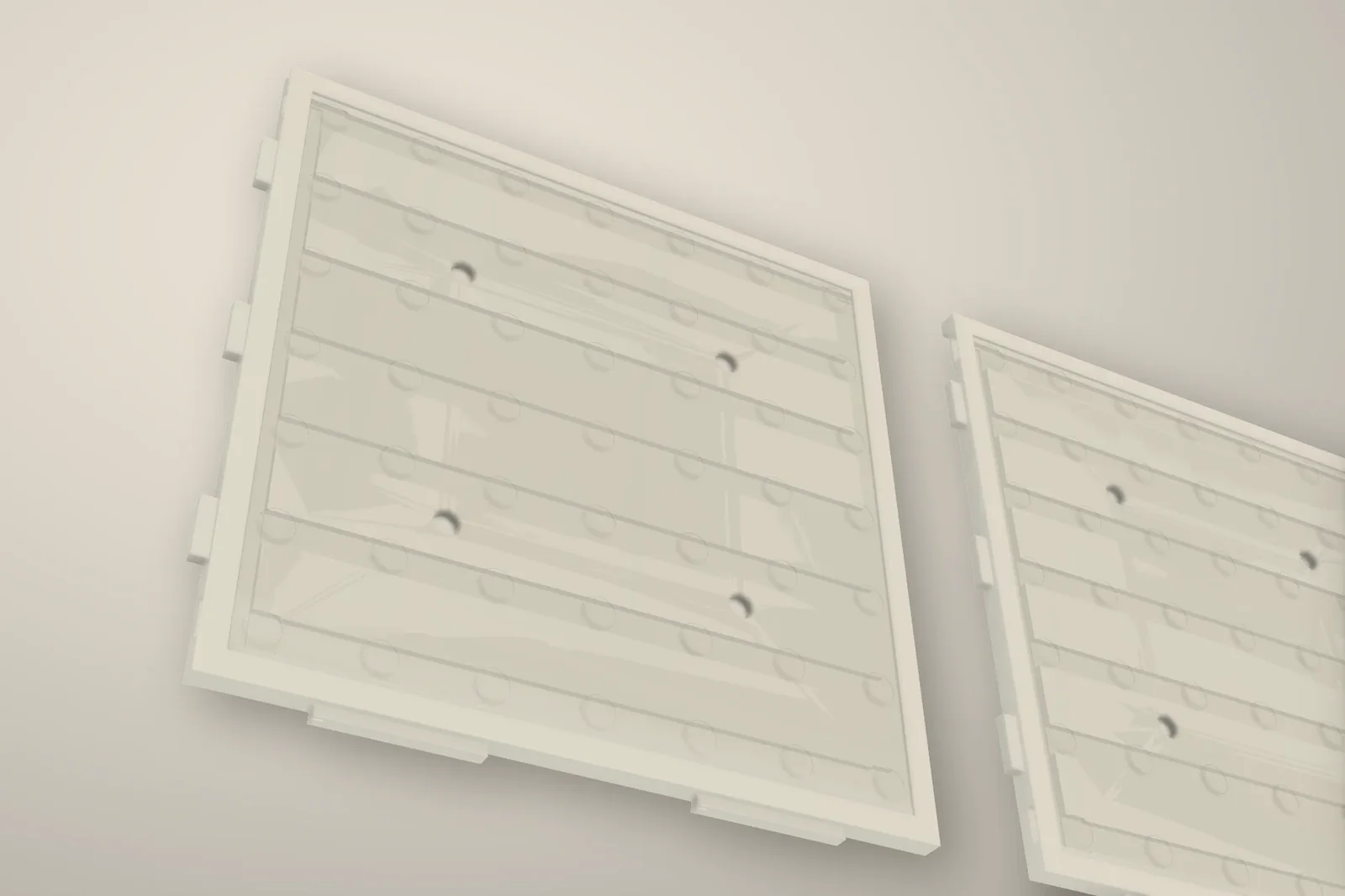

Base: 6 × 3 rail, 18, 882, One, with the controller

Captured from the CAD. Photographs the day it hangs.

MRS-BASE · Holds the lightRelease coming soon

Size

Eighteen panels. The one on my wall first. 1400 × 700 mm of art.

For a: 6 × 3 rail
Bases: 18
Pixels: 882
Origin: One, with the controller

PriceSet at release

Size: 233 × 233 × 8 mm
Pixels: 49 per base
Contacts: Through the seam

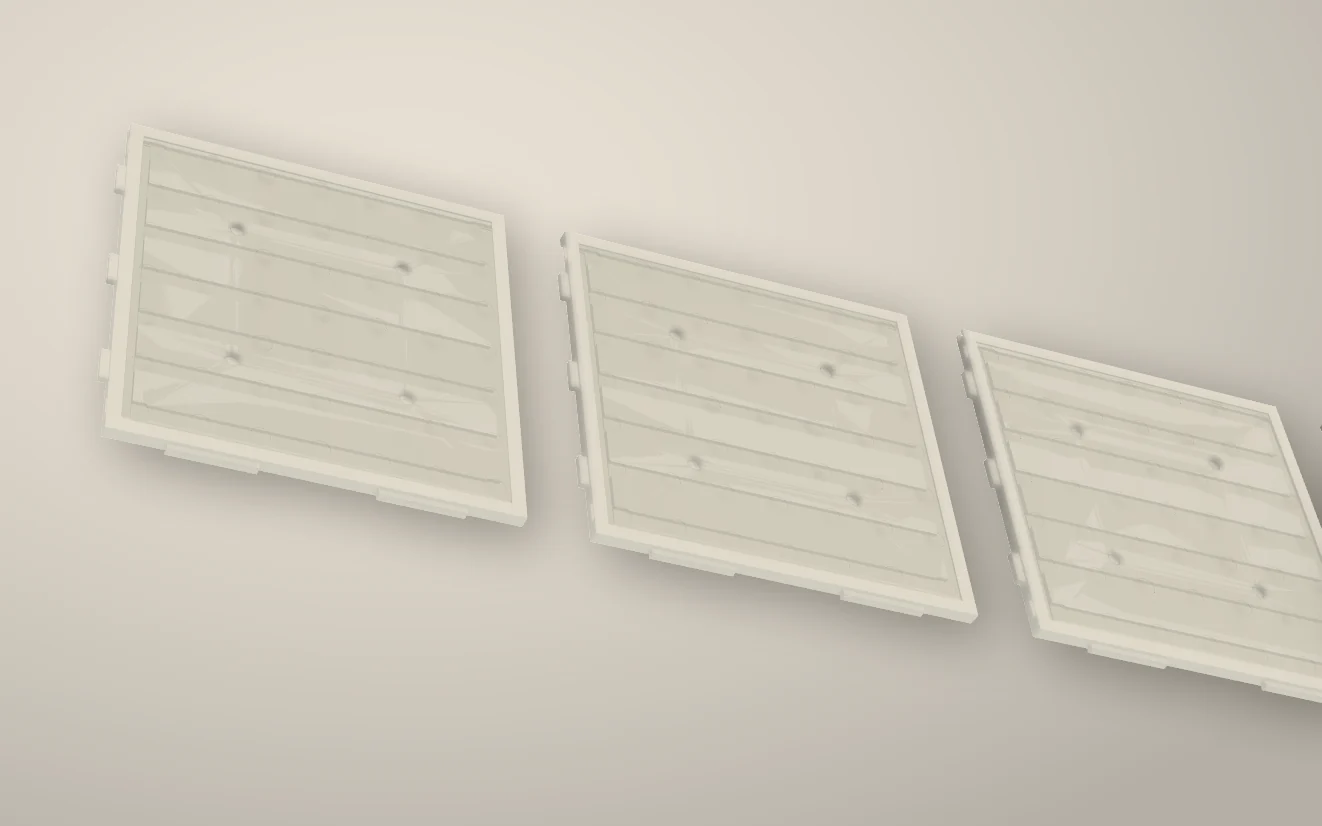

Variants: Five, by position

An 8 mm plate with the interlock joinery, one folded 49-pixel run laid in a serpentine channel, contacts on its edges that meet the next panel through the seam, and a clear lid with a lens over every pixel. Four magnets under the lid hold the face.

Bases are stocked ahead of orders and serialized after a bench test. Panels slide in from the right and click. You never touch a wire.

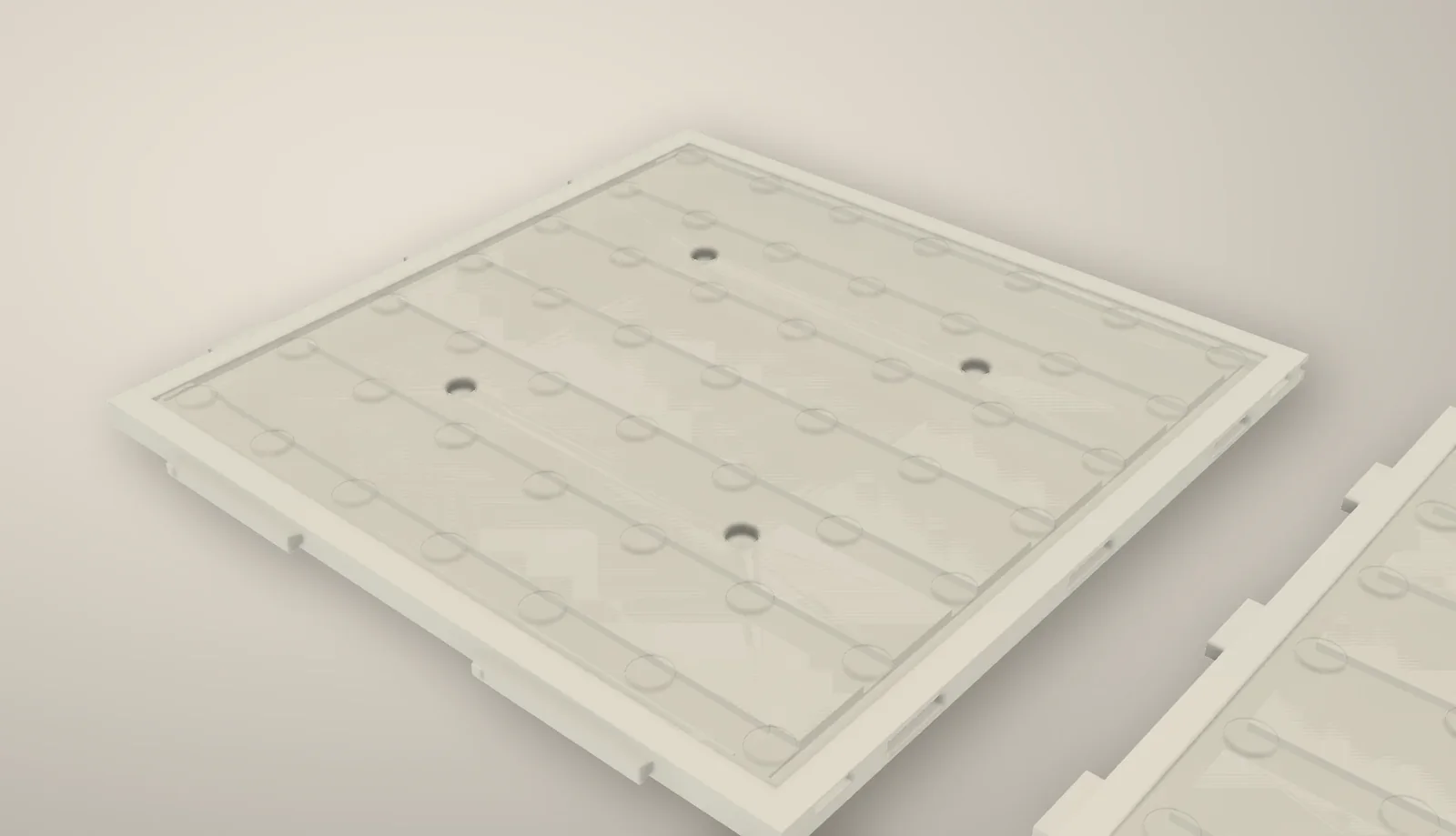

A Base from above: the channel, the contacts, the magnets

Goes with

Any face fits any base

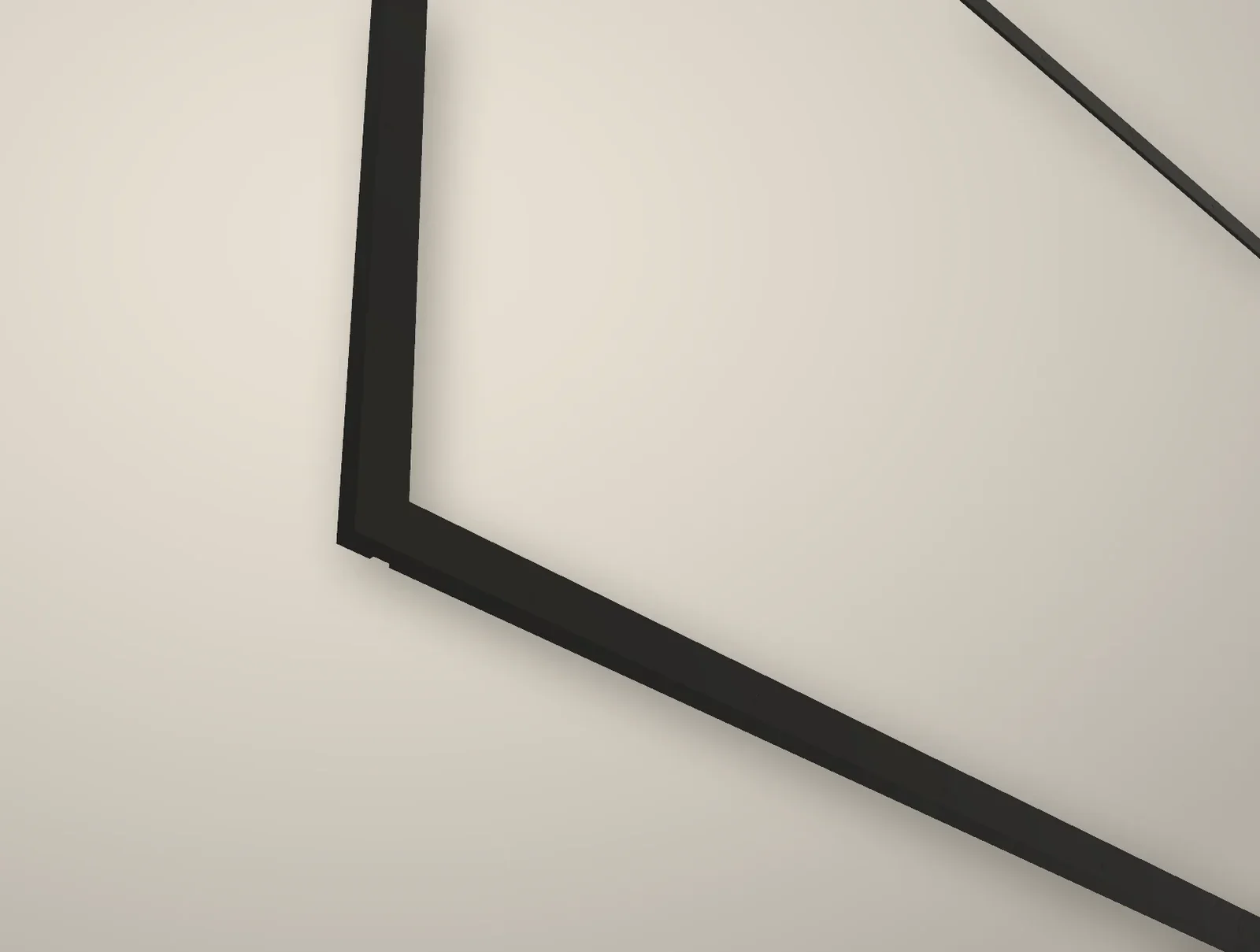

Rail

Carries the light

The frame you screw to the wall. A visible L, two hidden bars, one cord.

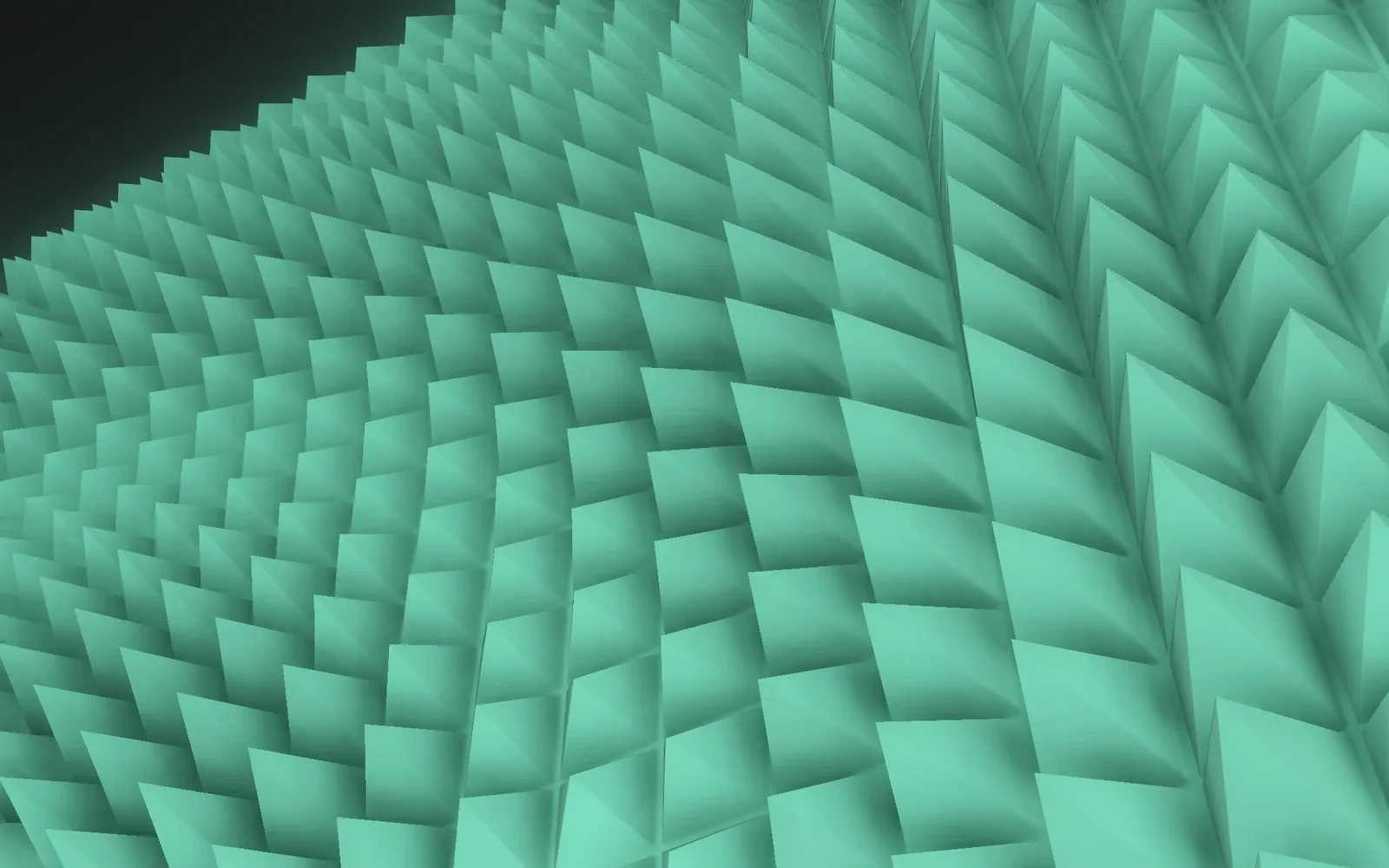

Face

Shapes the light

The scene. Printed when the order comes in, and it snaps onto the bases.
